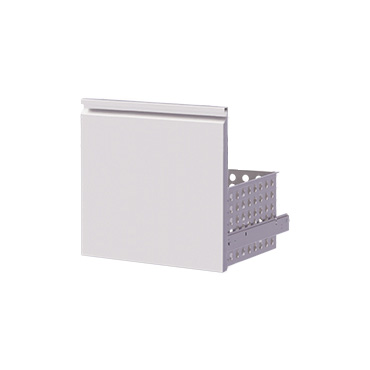

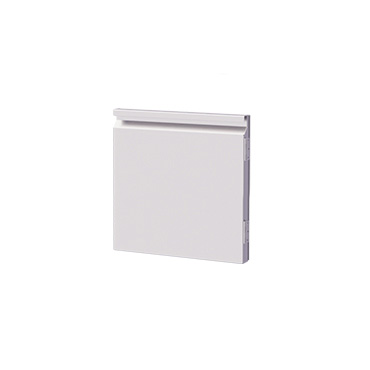

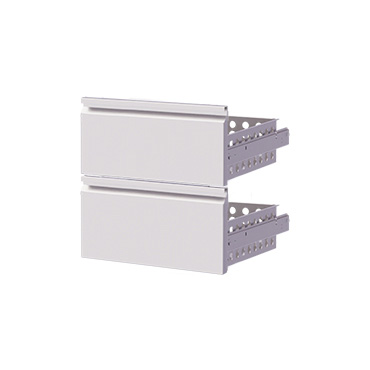

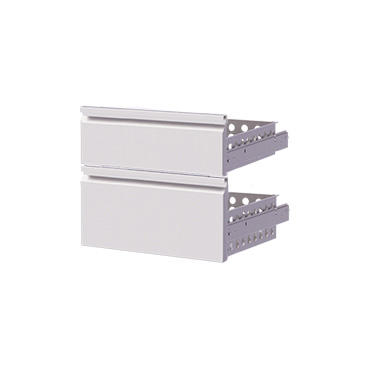

GN tables are primarily designed for gastronorm containers. The tables come with doors or drawers that can be combined. The drawers slide out on telescopic rails, allowing for easy pulling out and removal. Types of drawers for a one-compartment table: 100 + 150 or 200. You can assemble the table according to your preferences. Specifications: Temperature: +1°C ~ +6°C, Refrigerant: R600 (1GN) and R290 (2-5GN). Specific details will be provided soon.
| Product number | Name | X width | Y height | Z depth |
|---|---|---|---|---|
| x | Cooling table GN- 1GN (Aggregate) - Standard | 884mm | 460mm | 685mm |
| x | Cooling table GN- 2GN (Aggregate) - Standard | 1316mm | 460mm | 685mm |
| x | Cooling table GN- 3GN (Aggregate) - Standard | 1748mm | 460mm | 685mm |
| x | Cooling table GN- 4GN (Aggregate) - Standard | 2180mm | 460mm | 685mm |
| x | Cooling table GN- 5GN (Aggregate) - Standard | 2612mm | 460mm | 685mm |
| xx | Cooling table GN- 1GN (Central cooled) - Standard | 612mm | 460mm | 685mm |
| xx | Cooling table GN- 2GN (Central cooled) - Standard | 1044mm | 460mm | 685mm |
| xx | Cooling table GN- 3GN (Central cooled) - Standard | 1476mm | 460mm | 685mm |
| xx | Cooling table GN- 4GN (Central cooled) - Standard | 1908mm | 460mm | 685mm |
| xx | Cooling table GN- 5GN (Central cooled) - Standard | 2340mm | 460mm | 685mm |
| Image | Product number | Name |
|---|
| Image | Product number | Name |
|---|---|---|
 |
97-502 | Thermostat DIXELL XR60CH |
 |
97-010 | Switch - simple |
 |
97-011 | Switch - double |
 |
97-191 | Switch cover - simple |
 |
97-038 | Switch cover - double |
