The use of this type of cooling tables is for storing beverages. The tables are supplied with doors or drawers, which can be combined. The drawers slide out on telescopic rails, allowing for easy extraction and removal. Types of drawers for one chamber: 2x 1/2, 3x 1/3, 1/3+2/3, 5/12+7/12. Optional - cooling tub located in the aggregate chamber. The aggregate can be removed for easy maintenance. You can assemble the table according to your wishes. Specifications: Temperature: +3°C ~ +8°C, Cooling medium: R600 (1 chamber) and R290 (2-4 chambers). You can find specific performance details in the datasheet.
| Product number | Name | X width | Y height | Z depth |
|---|---|---|---|---|
| V2-030601-0100 | Beverage cooling table with door 1 chamber (Aggregate on right side) | 930mm | 850mm | 685mm |
| V2-030601-0101 | Beverage cooling table with door 1 chamber (Aggregate on left side) | 930mm | 850mm | 685mm |
| V2-030601-0104 | Beverage cooling table with doors 2 chambers (Aggregate on right side) | 1510mm | 850mm | 685mm |
| V2-030601-0105 | Beverage cooling table with doors 2 chambers (Aggregate on left side) | 1510mm | 850mm | 685mm |
| V2-030601-0108 | Beverage cooling table with doors 3 chambers (Aggregate on right side) | 2090mm | 850mm | 685mm |
| V2-030601-0109 | Beverage cooling table with doors 3 chambers (Aggregate on left side) | 2090mm | 850mm | 685mm |
| V2-030601-0112 | Beverage cooling table with doors 4 chambers (Aggregate on right side) | 2670mm | 850mm | 685mm |
| V2-030601-0113 | Beverage cooling table with doors 4 chambers (Aggregate on left side) | 2670mm | 850mm | 685mm |
| Image | Product number | Name |
|---|---|---|
 |
V2-030601-0116 | Drawers 1/2 + 1/2 |
 |
V2-030601-0117 | Drawers 1/3 + 1/3 + 1/3 |
 |
V2-030601-0118 | Drawers 5/12 + 7/12 |
 |
V2-030601-0119 | Drawers 7/12 + 5/12 |
 |
V2-030601-0120 | Drawers 1/3 + 2/3 |
 |
V2-030601-0121 | Standard door |
 |
V2-030601-0122 | Glass door |
| Image | Product number | Name |
|---|---|---|
 |
97-502 | Thermostat DIXELL XR60CH |
 |
97-011 | Switch - double |
 |
97-038 | Switch cover - double |
 |

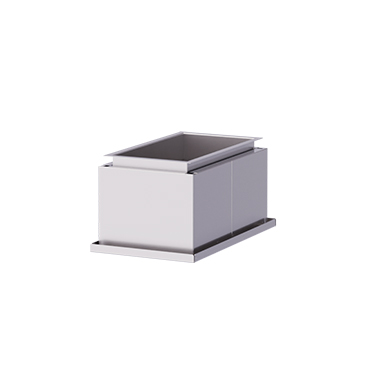

6K14-40-599-048 | Evaporation tub |
